UTJ Mobile Festival

product description:

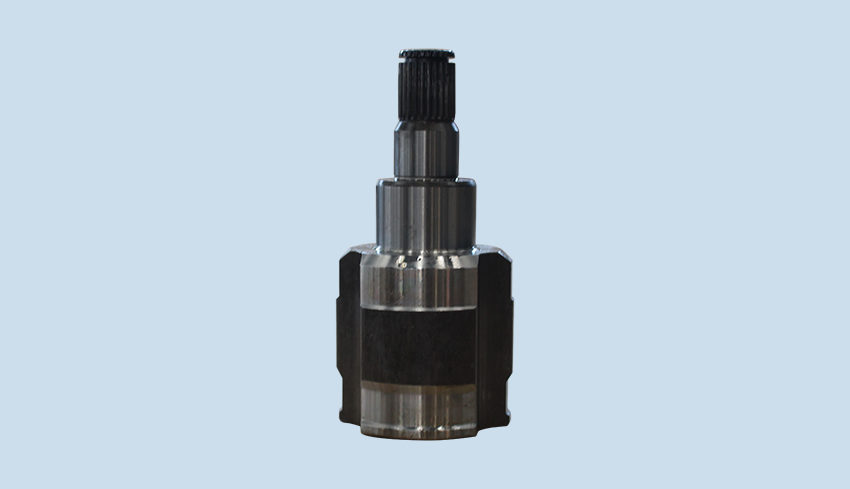

The moving joint is connected to the planetary gear of the gearbox through splines, and is mainly used to input the power output from the gearbox toConstant velocity drive shaft assemblysuperior.The moving joint includes a three-ball pin and a three-pillar groove shell. The ball path of the three-pillar groove shell is linear, so that the three-ball pin can slide axially in the moving joint, so as to compensate for the lengthening of the track when the car passes bumps, turns or vacates. Shorten the distance.

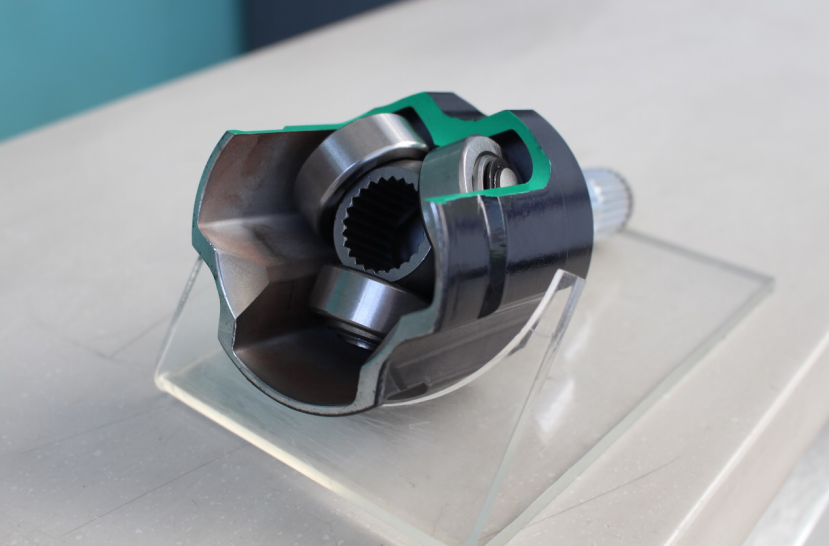

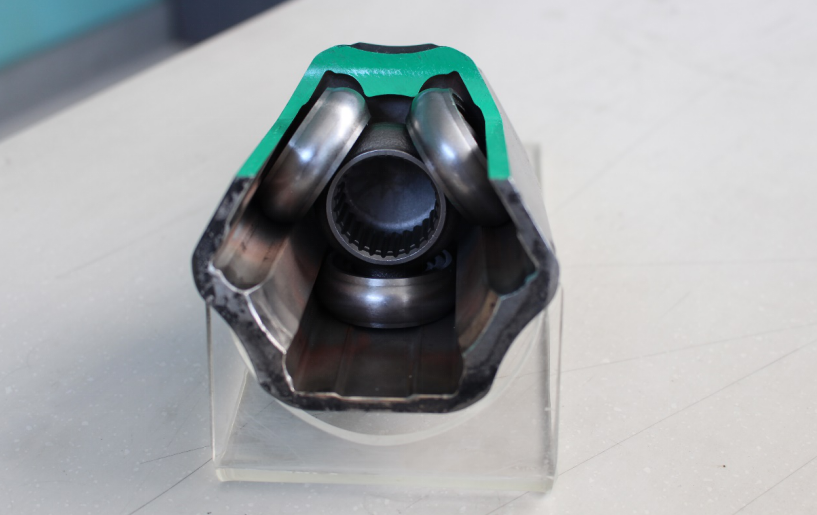

      There is no steel ball in the UTJ moving joint, but three bearings with needle rollers, which can slide in three tracks in the three-column shell.Mainly used for moving joints of four-wheel drive vehicles, suitable for the position of moving joints with a small torsion angle, which can slide inward and outward to adaptDrive shaftThe change in length when the vehicle is moving.
