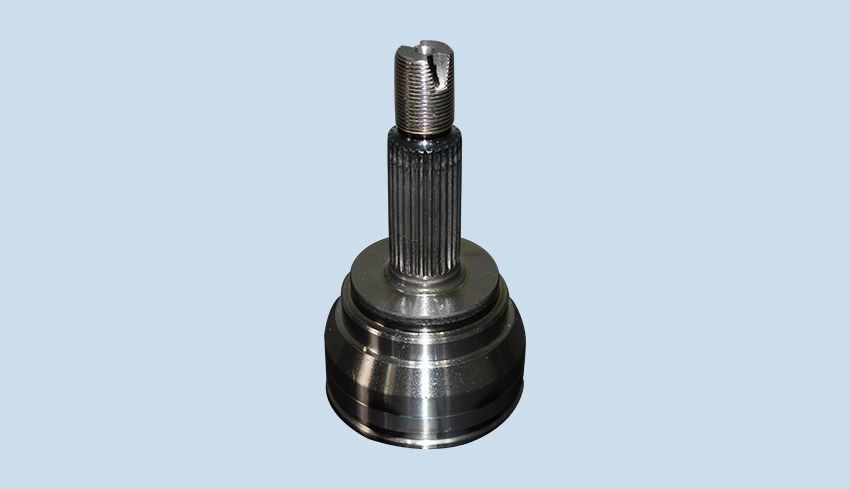

Fixed section

product description:

The fixed section isIt is connected to the hub through splines, mainly to pass the gearbox throughConstant velocity drive shaft assemblyThe transmitted power is implemented to the function of the wheel end.The fixed joint mainly includes a bell-shaped shell, a cage, a star sleeve, and a steel ball. The spherical surface and raceway of the fixed joint are all curved surfaces, so the fixed joint cannot move axially and can only provide steering function for the car.

       Since the inner spherical surface of the jacket and the outer spherical surface of the cage, and the inner spherical surface of the cage and the outer spherical surface of the star sleeve are jointly controlled so that the constant velocity joint has no axial movement, it is called a fixed constant velocity joint. The product's limit shaft angle is about 45° and can reliably transmit torque when the angle between the two shafts is as high as 42°.When working, regardless of the transmission direction, all 6 steel balls participate in the transmission of torque, so it has a strong transmission capacity and a long service life.
