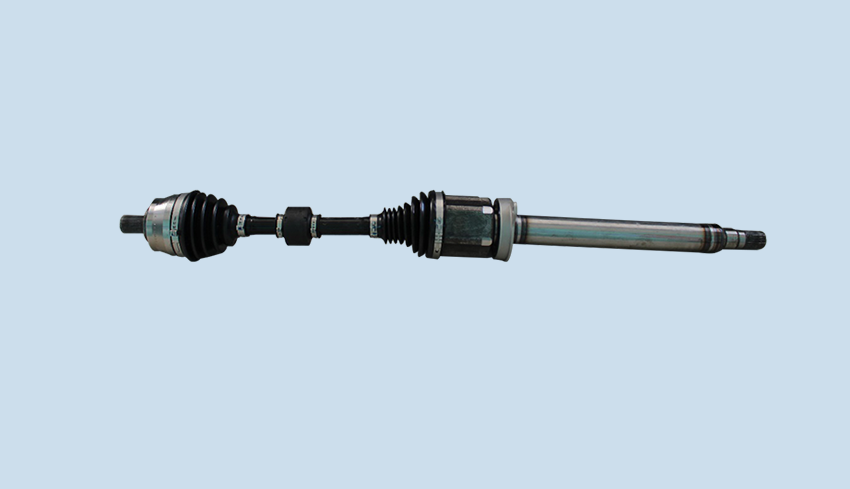

Long handle hollow tube intermediate support typeConstant velocity drive shaft assembly

Section type: long-handled hollow pipe intermediate support type, etc.Speed ​​drive shaft assembly

Advantages: lightweight

product description:

Long-handled empty tube with intermediate support type constant velocityDrive shaft assemblyIs a hollow shaft tubeDrive shaft assembly, Including a shaft tube, both ends of the shaft tube are respectively provided with a left shaft fork and a right shaft fork; the shaft tube includes a spline sleeve, a left change

Diameter tube, main shaft tube and right reducer tube, the end of the left shaft fork is slidingly fitted with one end of the spline sleeve, and the other end of the spline sleeve passes through the left reducer, main shaft and right reducer in sequence One end of the tube is fixedly connected,

The other end of the right reducing pipe is welded to the right shaft fork as a whole.

This design not only increases the natural frequency of the shaft tube, effectively increases the allowable length limit of the shaft tube, but also facilitates assembly and effectively reducestransmission shaftThe total weight of the system reduces the production cost.
