Section type: RF + three-stage TJ

Advantages: The movable section adopts a long rod to increase the support of the middle bearing, which will reduce the risk of car shaking and increase the user's physical examination

product description:

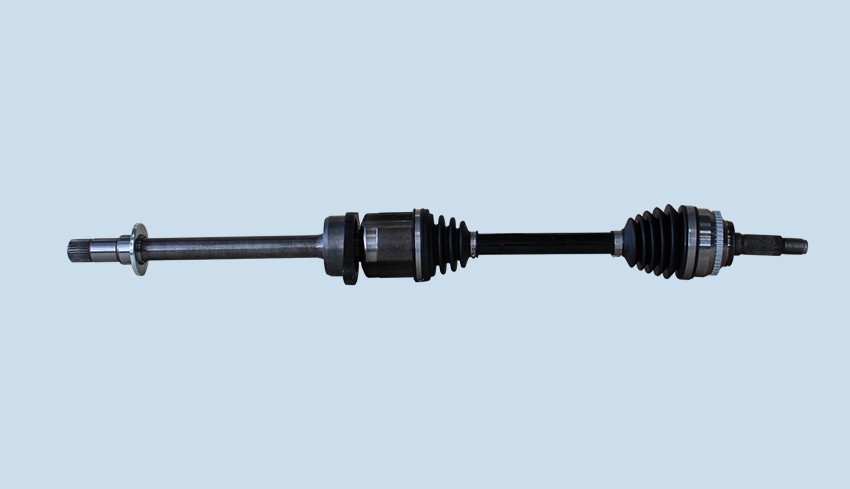

This paragraphDrive shaftA three-stage arrangement is adopted. Compared with the traditional two-stage arrangement, the three-stage drive shaft adds a bearing in the moving section to play a role of slewing support. The outer ring of the bearing is matched with different bearing brackets and bearings according to the layout of the chassis. The material of the bracket can be roughly divided into ductile iron and cast aluminum.The bearing support structure shell is roughly divided into assembly type and integral type. Compared with the integral bearing support, the assembly type bearing support has the characteristics of simple assembly and strong integrity.The assembled bearing bracket has the characteristics of high versatility, easy disassembly and assembly, and low assembly replacement cost;

Three-stageDrive shaft assemblyThe movable section can match the current mainstream AAR section, UTJ section and GI section. According to the actual vehicle chassis drive shaft arrangement angle, the movable section can be switched flexibly. The dust cover material supports TPE polyester elastomer and polychloroprene. Diene (CR);

This structure is currently widely used in the chassis layout of passenger vehicles such as SUVs and cars, which can improve the NVH index of the vehicle and improve the ride comfort of the vehicle.
