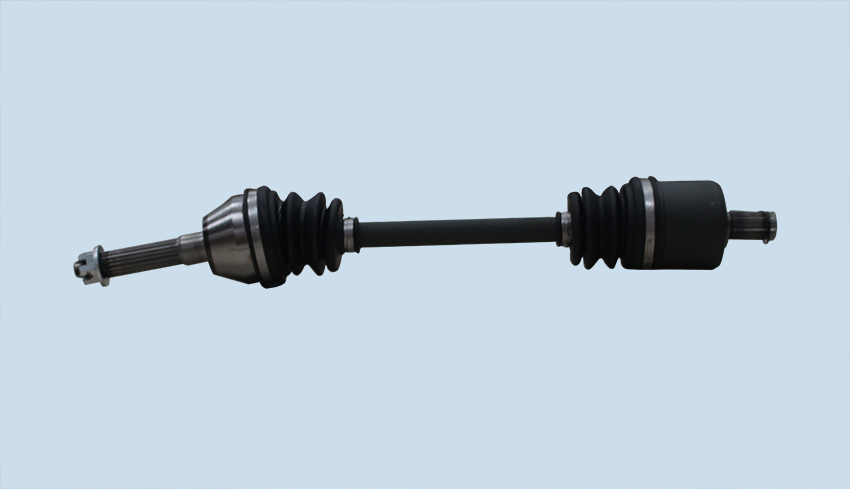

ATV at constant speedDrive shaft universal joint assembly

Section type: ATV with constant speedDrive shaftUniversal joint assembly

Advantages: low cost and shock absorption

product description:

Constant velocity drive shaft universal joint assembly of ATV A constant velocity universal jointDrive shaft assembly, Including a three ball pin universal joint, a ball cage type universal joint and an intermediate shaft, the three ball pin universal joint includes a three ball pin universal joint shell and a three ball pin dust cover, the ball cage The universal joint includes a ball cage universal joint shell and a ball cage dust cover. The other ends of the joint shell are respectively fixed on the intermediate shaft, and the joint between the three ball pin universal joint shell and the three ball pin dust cover is provided with a weighting block. Weighting blocks are provided at the joints of the dust cover; weighting blocks are respectively provided at the joints of the intermediate shaft with the three ball pin dust cover and the ball cage dust cover; A shock-absorbing groove is arranged inside the middle section of the joint of the ball-cage universal joint.

The assembly has a reasonable structure, low cost, and shock absorption.
